| Sefco Product Line - LNG Distribution Pumps |
LNG Pumps |
|
|
Features
- Pumps designed for high reliability
- Modular technology for high efficiency and low bearing load
- High efficiency
- Inducer technology for low NPSHr
- Fast cool down due to light weight cold end
- Dedicated sealing for LNG application
- Extended lifetime of the new SEFCO ATEX gearbox IEX
- Designed for intermittent and continuous operation
- LOX-approved cleaning procedures and assembly for all SEFCO pumps, irrespective of application
- ATEX certified
|
|
| |
|
|
| MODEL |
C-19/IEX-H |

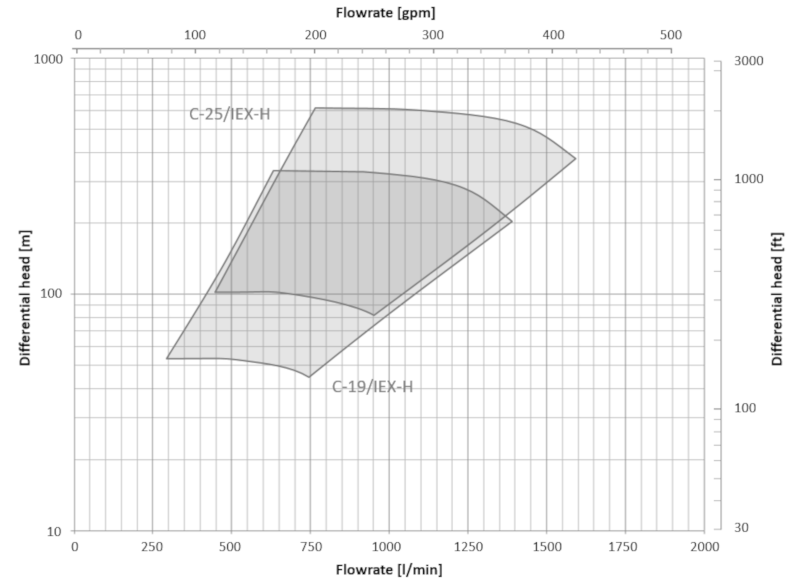

| Differential head |
50-330 m |
165-1'100 ft |
| Differential pressure |
2-14 bar |
30-200 psi |
| Flowrate |
300-1'300 l/min |
80-345 gpm |
| Seal type |
mechanical seal (GRD) |
| Operation |
intermittent |
| Data sheet |
C-19/IEX-H |
| MODEL |
C-25/IEX-H |
| Differential head |
10-600 m |
320-2'000 ft |
| Differential pressure |
4-25 bar |
60-360 psi |
| Flowrate |
400-1'600 l/min |
105-420 gpm |
| Seal type |
mechanical seal (GRD) |
| Operation |
intermittent |
| Data sheet |
C-25/IEX-H |
|
